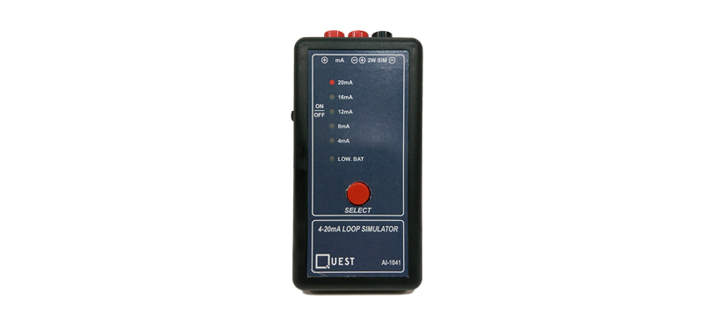

PORTABLE 4-20 mA CALIBRATOR / SIMULATOR
Portable 4-20 mA Calibrator and simulator is a precise hand-held device for calibration or checking of any process instrument. Device provides step output of process signals on pressing a single button for fast and easy checking. Light-weight device specifically designed for use on field.
| INDICATOIN | 5 LEDs for range and 1 for low battery |
| RANGE | Five fixed points: 4mA, 8mA, 12mA, 16mA, 20mA, |
| RANGE SELECTION | Single push button |
| ACCURACY | ± 0.05 % F.S. |
| POWER SUPPLY | 9 Volt Battery |
| SIMULATION | Two wire loop transmitter |
| LOAD | 600 Ω @ 20mA Maximum |
| ENCLOSURE SIZE (mm) | 135 (H) X 70 (W) X 25 (T) |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
