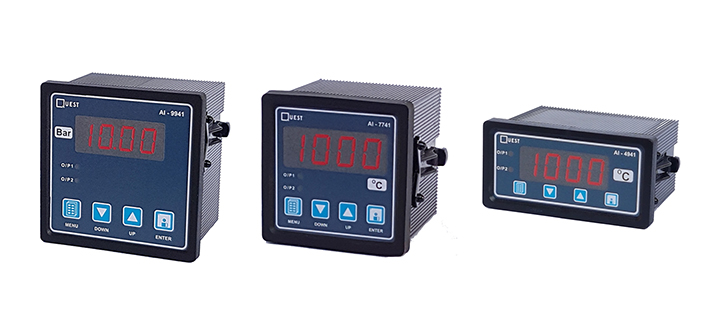

Auto-Tuned Pid Temperature Controller
MODEL NUMBER: 102, 103, 104, 107
Temperature controller with unique features to provide a precise control with Automatic PID tuning. Microcontroller based instrument with single 4-digit display for real time and set value temperature. Soft keys provided on front of the panel for easy setting with password protection.
| INPUT | Selectable - Thermocouple (J, K, R, S, T, E, N) & RTD (PT-100) |
| OUTPUT | 2 Relays ( NO ) Contact: 5A @ 230V AC or SSR (Optional) |
| DISPLAY | 4 Digit 0.56” High Bright Seven Segment LED |
| DISPLAY RANGE | -200 TO +1800 °C |
| RESOLUTION | 1 °C or 0.1 °C Selectable |
| POWER SUPPLY | 230 V AC ± 15 % ( consumption < 5 Watts ) |
| DISPLAY ACCURACY | 0.3 % F.S. + ±1 count |
| CONTROL ALGORITHM | ON / OFF control or Auto-tuned PID control, software selectable |
| ENCLOSURE SIZE (mm) | 96X96X65, 72X72X65, 48X96X65 |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH ( non-condensing ) |
